技術參數
應用： | 最高粘度達20.000 cP且含有顆粒或粉末的液體。適用于儲存在IBC噸桶（IBC攪拌器）或料桶（桶用攪拌器）中的液體 | |
ATEX： | 適用于具有潛在爆炸性危險的場所（ATEX區域 | |
額定電壓： | 400V AC，50-60 Hz或220-230V AC，50-60 Hz | |
尺寸： | 1300x1200x3000mm（長x寬x高） | |
材質： | 接液部件（葉輪、軸）：AISI 316、PP、PFA、ECTFE。 其他部件： AISI 304或涂漆鋼。 | |
用可以攪拌各種液體產品的全套解決方案以節約您的時間。
攪拌基站是一種能在IBC噸桶中進行高效攪拌的自動化系統。有固定式和移動式可供選擇，以適應不同場所的使用需求。
-
產品手冊&操作指南
-
證書
Declaration of conformity CE
Products defined as machinery, which were given the CE sign must meet the requirements of Machinery Directive 2006/42/WE regarding safety. They are also in compliance with Low Voltage Directive 2014/35/UE and Electromagnetic Compliance Directive 2014/30/UEDirective ATEX 2014/34/UE
Available execution for ATEX zone II 2G. -
維修視頻教程
-
其他執行

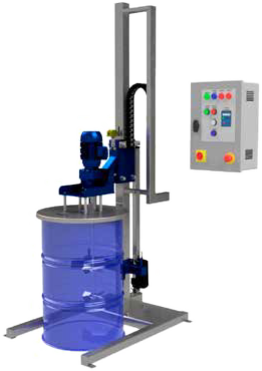

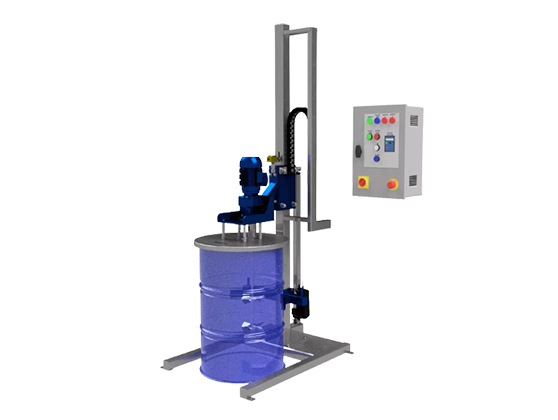

Drum Mixing Station

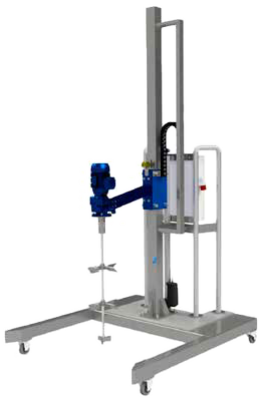

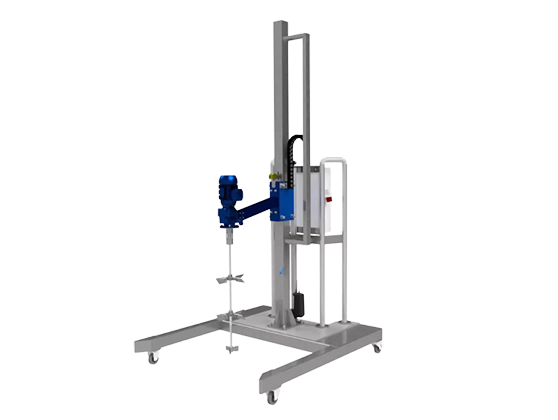

The unit is additionally equipped with an integrated drum cover for the mixer. It covers the drum during the mixing process ensuring the medium does not escape the drum while also preventing particles from outside from getting into the drum. What is more, the drum is fastened with belts which prevent it from rotating. We also offer made-to-order drum covers with a feeding hopper allowing the addition of ingredients during the mixing process without the need for raising the mixer itself. Mobile Mixing Station
The mobile design of the mixing station enables its use in many places across the institution. The mobile station is equipped with wheels allowing it to be easily transported. After setting the station in a desired position (usually above the tank) the wheels can be locked in place which guarantees safety during work. Mobile mixing station is available in versions for IBC tanks and drums. If required the station can be made in ATEX standard. -
控制功能
Raising or lowering the mixer,
Setting the rotation speed (frequency inverter),
Setting the mixing time (timer) and automatic shut-off,
Stopping after raising the mixer or when the IBC is not placed,
START, STOP, E-STOP (emergency stop),
Protected from overloading.
-
建設
- Supports the mixer and the control cabinet,
- 2 execution variants - stationary (floor and wall mounted) or mobile (mounted on 4 wheels allowing free movement of the unit),
- Wheels are equipped with a locking mechanism.
- Equipped with a position switch – disables the mixer from rotating when it is not in a lowered position.
- Low-speed mixer, equipped with a universal, folding impeller. Allows for mixing liquids with high viscosity, liquids containing solid particles, and liquids with powders,
- While the mixer is stopped the impeller remains folded which enables it to be easily inserted into the ICB,
- After the mixer is started the impeller unfolds due to the centrifugal force and begins mixing the whole volume of the container,
- Depending on the application different types of impellers can be ordered.
- Disables the mixer’s rotation while the container is missing or placed incorrectly.
- Easily operated by a single person,
- Protected from an accidental fall.
- Positioning unit integrated into the control cabinet cabled and connected to the mixer and sensors,
- The frequency inverter controls the rotational speed and prevents the motor from overloading,
- Equipped with a control panel including switches and a display for setting the rotational speed,
- Mixing time is controlled via a timer with an automatic shut-off.
- Responsible for controlling the mixer’s motor (start, stop, rotational speed setting, emergency shut-off),
- Raising and lowering the mixer,
- Setting the mixing timer.
- Positions the container under the mixer.

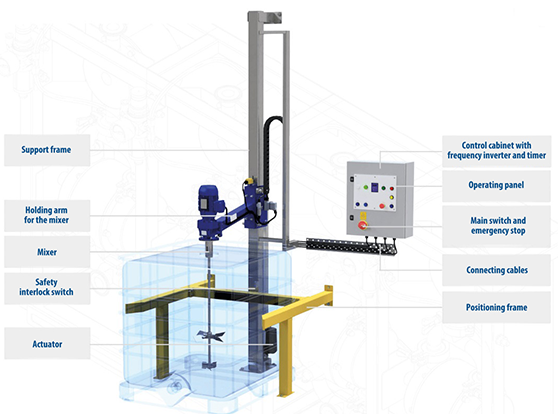

Support frame Holding arm for the mixer Mixer Safety interlock switch Electric actuator, pneumatic cylinder or manual rope reel Control cabinet with frequency inverter and timer Operating panel Main switch and emergency stop Connecting cables Positioning frame -
